SECURITY GATEWAY HARNESS EXTENSIONS 25CM/10" BY STUFF4CAR FOR ALFA ROMEO GIULIA/STELVIO

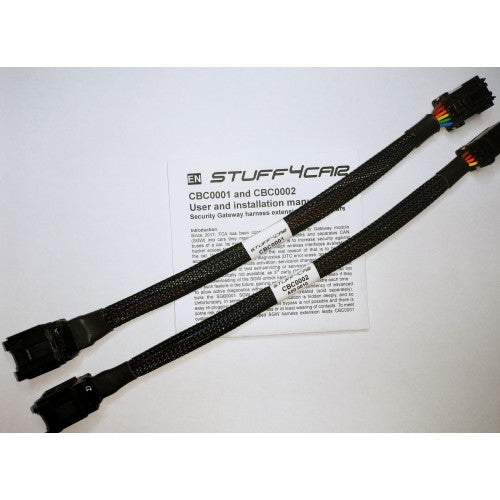

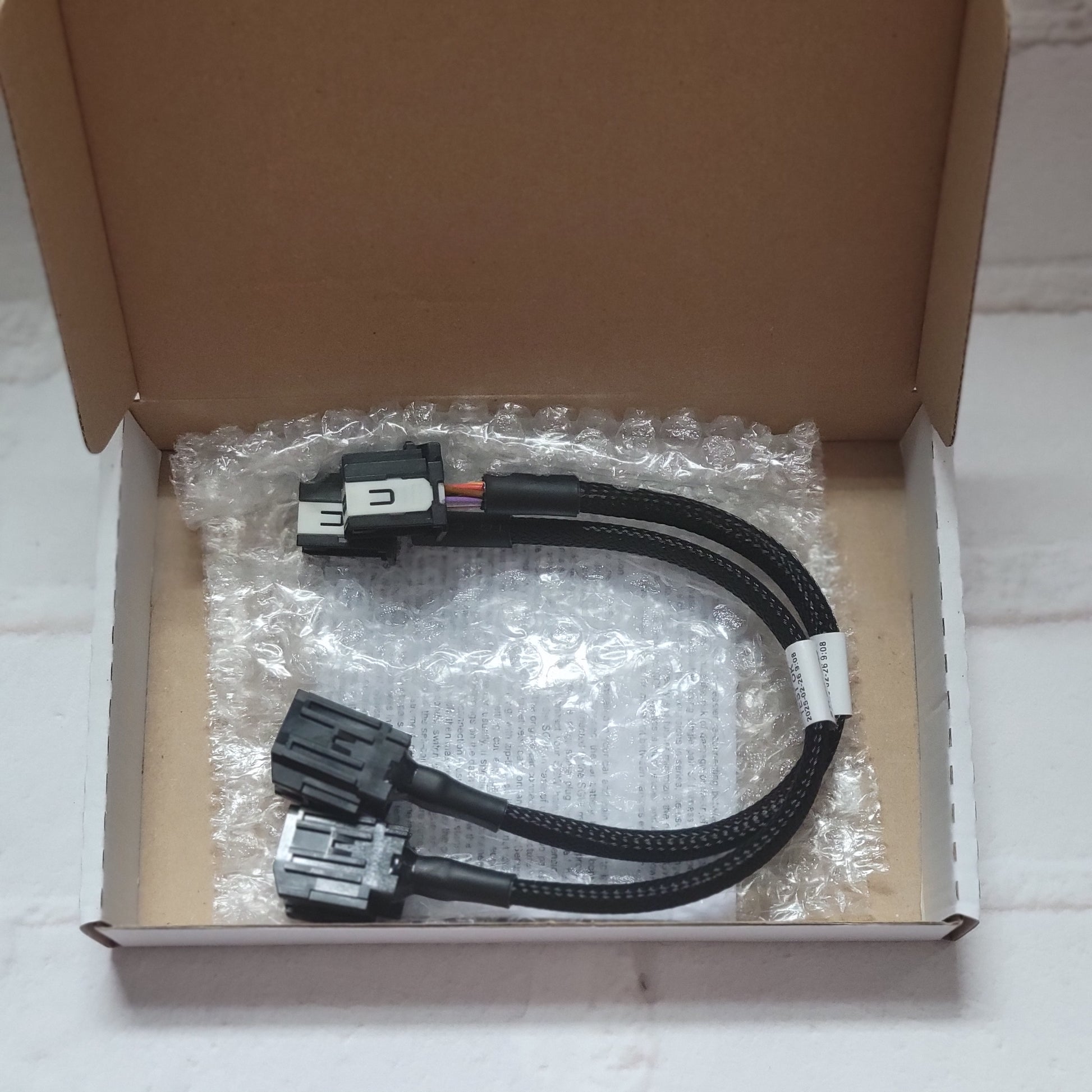

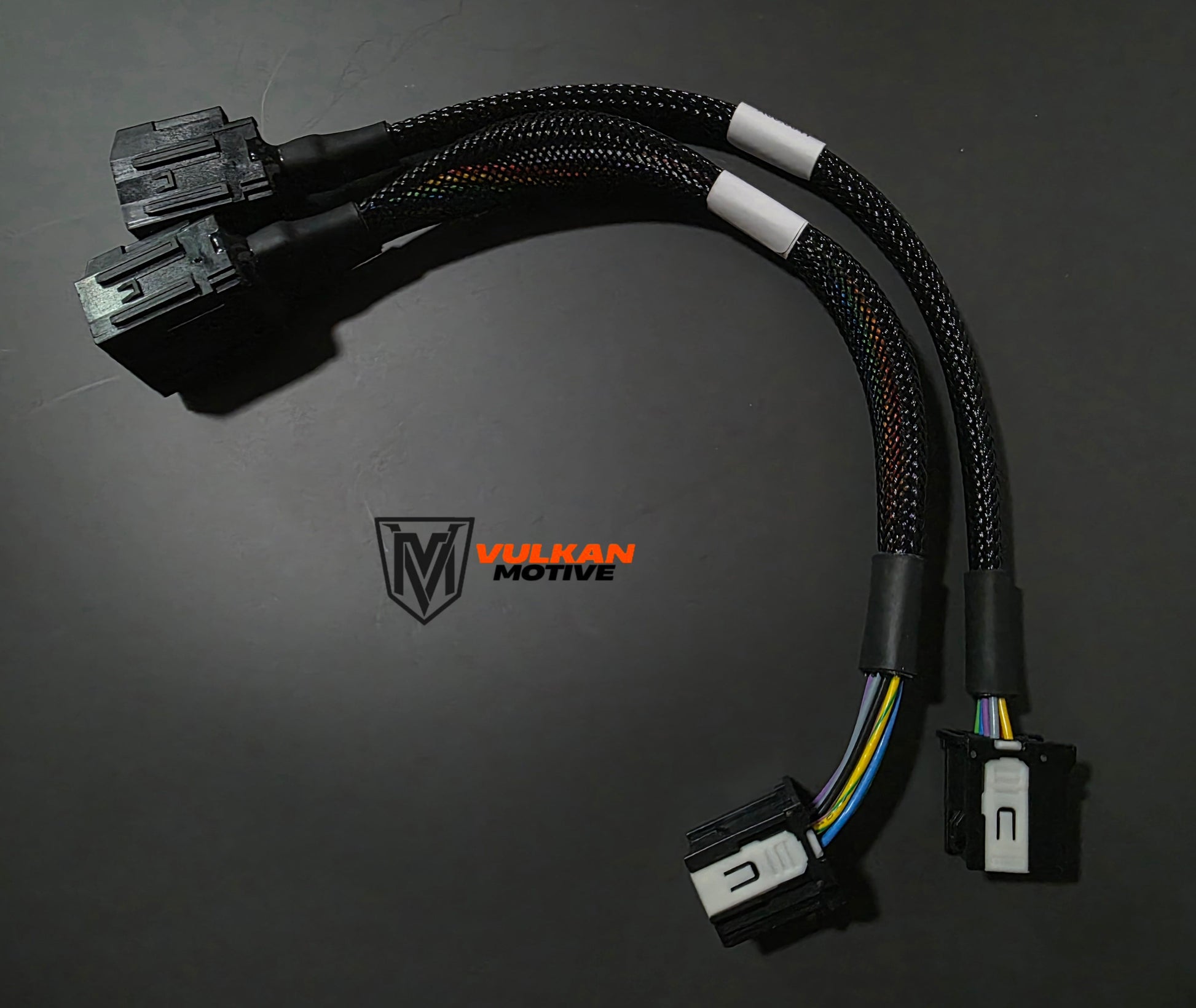

CBD0001.A00 – SGW Extension Leads (25cm / 10")

• Includes: 1x 12-pin + 1x 8-pin extension looms
• Length: 25cm (10")
• Vehicle Compatibility: FCA/Stellantis models with external SGW modules, including:
  • Alfa Romeo: Giulia, Stelvio (MY2018–2025)
  • Jeep: Renegade, Compass, Wrangler, Cherokee, Grand Cherokee
  • Fiat: 500L, 500X, Doblo
  • Dodge: Challenger, Charger, Durango
  • RAM: 1500
• Function: Eases SGW bypass installation and protects factory connectors from wear and damage

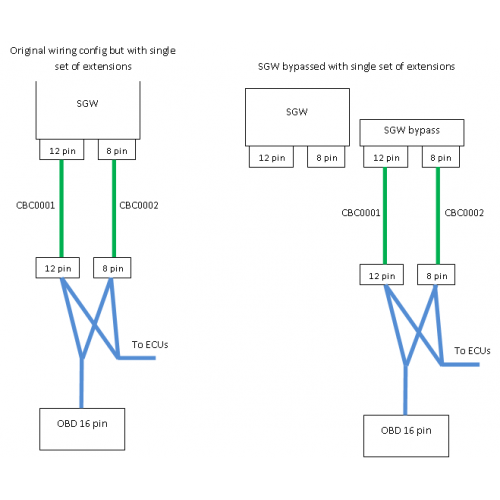

• Single Pair Use: Helps with safer SGW connections and reduces strain on original wiring

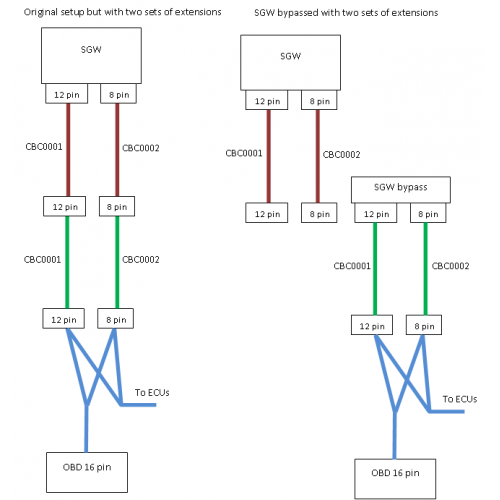

• Why Use Two Pairs: Using two extension pairs in series is the recommended setup for most users:
  • Allows installation of an SGW bypass module (sold separately) between the two sets without unplugging the factory SGW
  • Significantly reduces the chance of accidental damage to OEM connectors during installation or future service
  • Makes bypass connection a quick, low-risk task with no need to reach or disconnect the factory SGW again
  • Alfa Romeo Giulia: Bypass accessible behind steering column trim panel
  • Alfa Romeo Stelvio: Install achievable by removing the glovebox (~5-minute job vs. 1+ hour without extensions)
• Ordering Tip: If you're planning to use a bypass, order two pairs upfront to avoid extra shipping costs. Several customers have mistakenly ordered only one set, then needed to place a second order.
• Not Compatible: With vehicles where SGW is integrated into the BCM (e.g. Alfa Romeo Tonale)
• Quality: Manufactured using high-grade components and fully tested during production
• Warranty: 2 years
