SGW BYPASS (SECURITY GATEWAY BYPASS FCA CARS) - ALFA ROMEO GIULIA & STELIVIO

SGW Bypass Device for Alfa Romeo Giulia/Stelvio 2018+

Restore full OBD-II diagnostics for FCA/Stellantis vehicles with external SGW modules.  MADE in EU

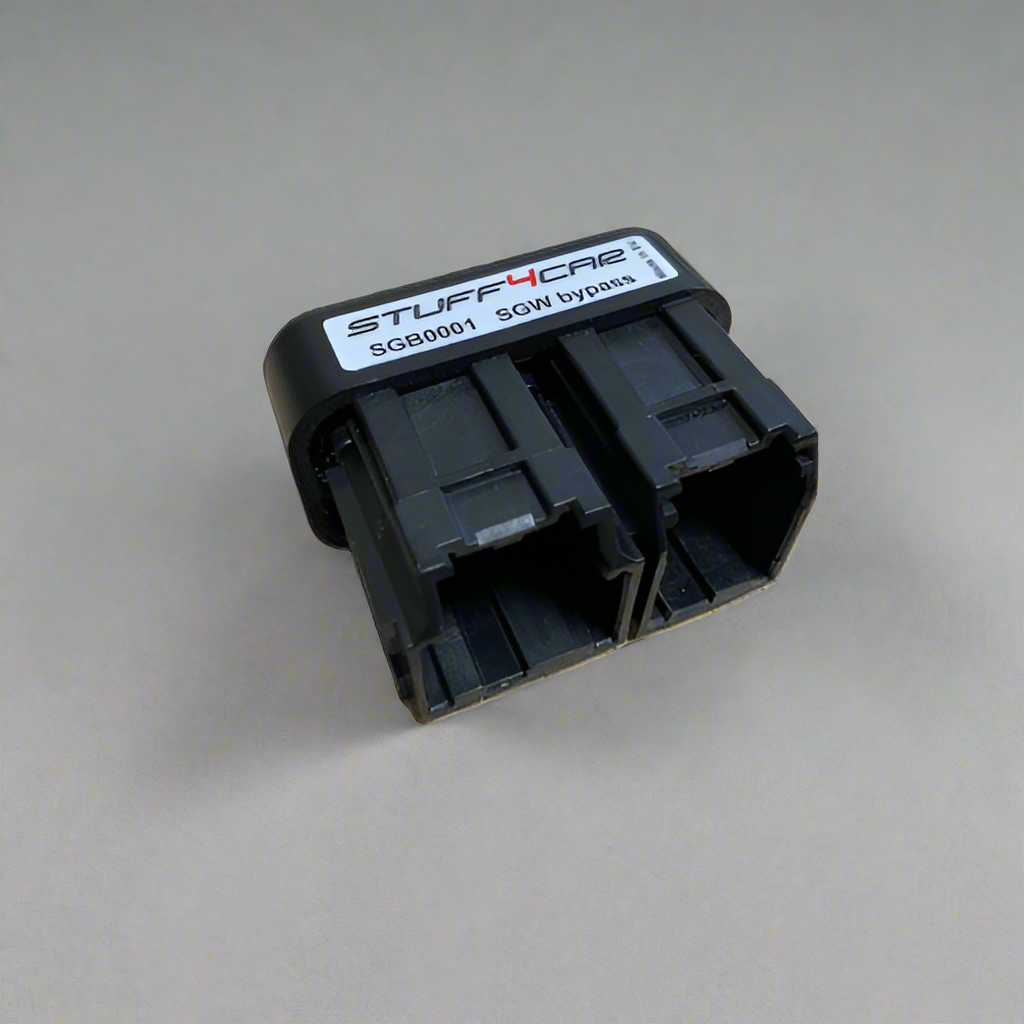

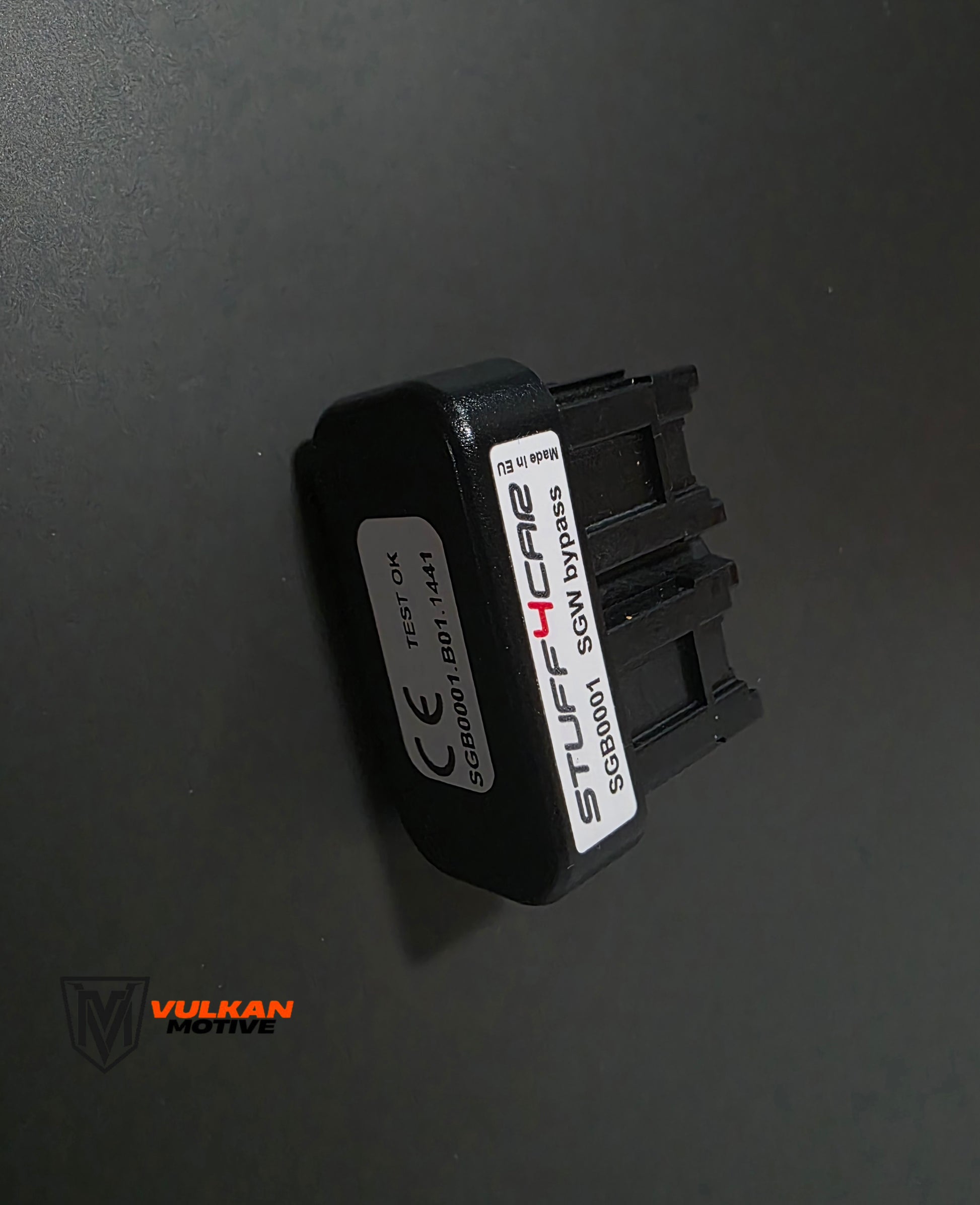

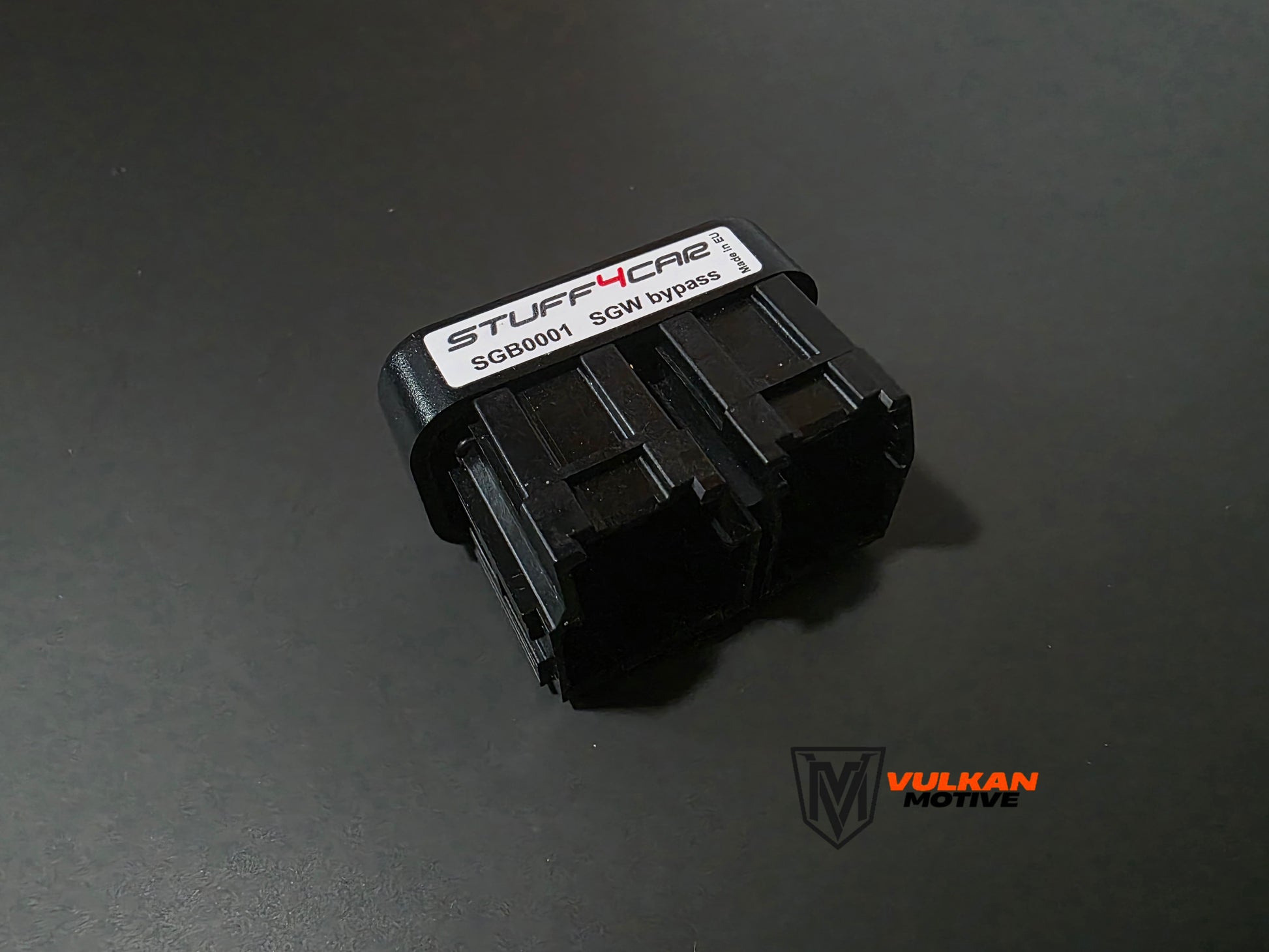

The SGB0001 is a plug-and-play bypass solution that temporarily replaces the Secure Gateway (SGW) module in supported FCA/Stellantis vehicles. It unlocks full diagnostic capabilities for use with third-party scan tools— enabling functions typically blocked by factory security such as DTC clearing, proxy alignment, service resets, and more.

This tool is designed for use during service, tuning, or maintenance and is widely adopted by independent garages, tuners, and advanced enthusiasts.

Compatible Vehicles (with external SGW modules)

Including but not limited to the following platforms:

• Alfa Romeo: Giulia, Stelvio (NAFTA 02/2018+, EMEA 04/2018+, MY2020–2025)
• Jeep: Renegade, Compass, Wrangler, Cherokee, Grand Cherokee
• Fiat: 500L, 500X, Doblo
• Dodge: Challenger, Charger, Durango
• RAM: 1500

Key Features

• Restores full access to diagnostics using 3rd-party OBD tools
• Plug-and-play installation (no coding or configuration required)
• Tested and verified with Alfa Romeo Giulia/Stelvio platforms
• Built with premium components; 800-point automated testing per unit
• 2-Year warranty included (Stuff4Car)

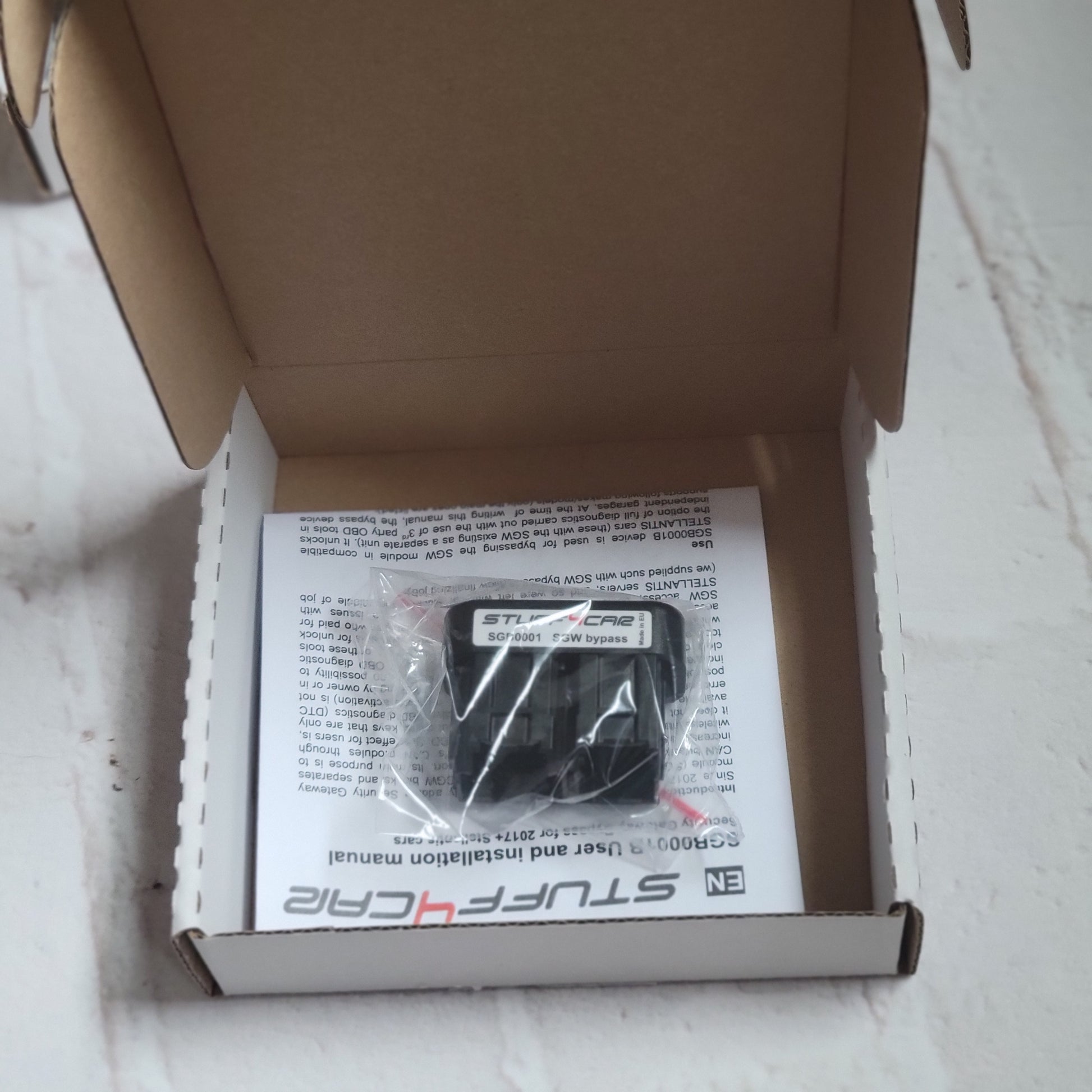

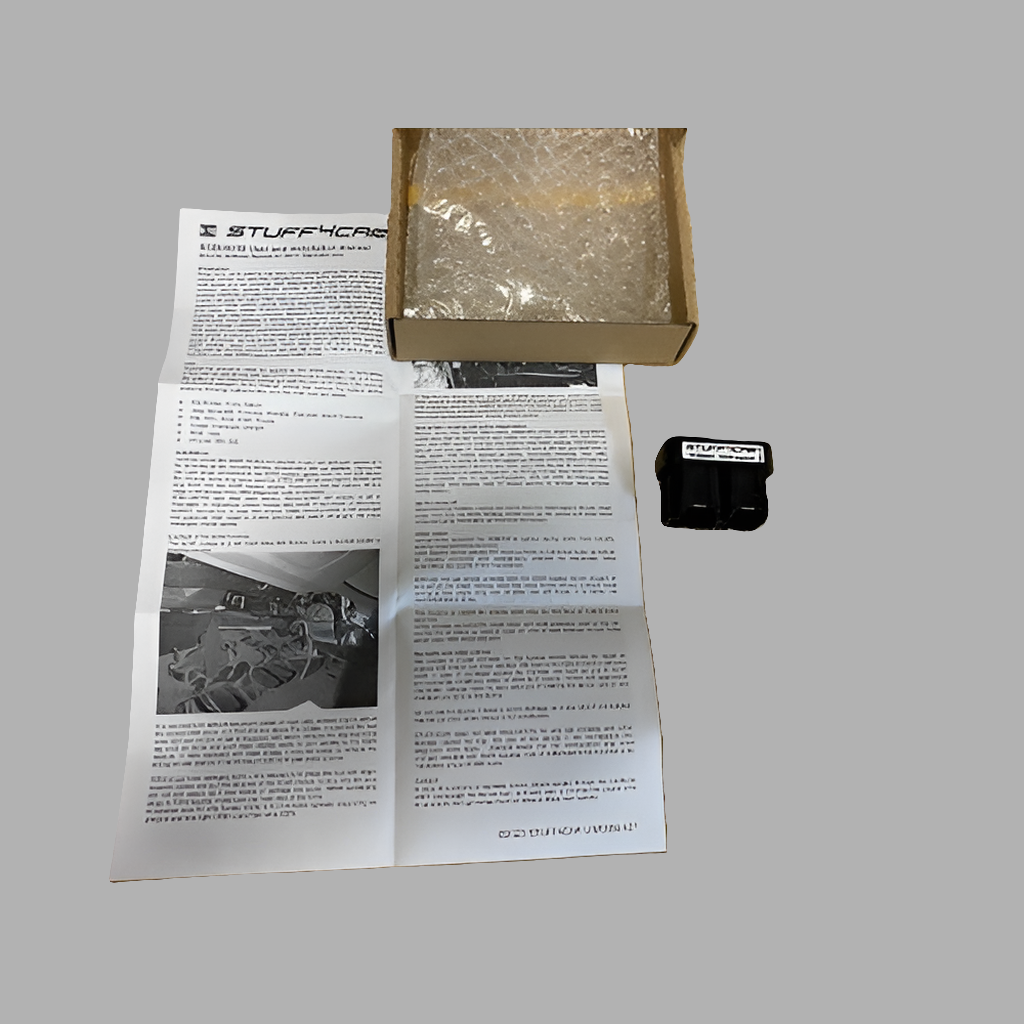

• User installation manual provided

Important Compatibility Notice

Some newer vehicles produced from 2021 onward—including the Alfa Romeo Tonale—feature a redesigned electrical architecture with the SGW module integrated directly into the BCM (Body Control Module). These integrated SGWs cannot be bypassed.

If your vehicle:

• Shows an SGW during a diagnostic scan,
• Has no visible external SGW module (12- and 8-pin connectors), and
• Is a new-generation model (not a facelift) from 2021+

…it is likely not compatible with this device.

We make every effort to update our compatibility database, but Stellantis service documentation does not always disclose SGW integration. Please verify compatibility before purchase.

 Recommendation:

• Accessing the SGW (Security Gateway) module on Stelvio platforms requires more effort compared to Giulia. To save time and reduce effort during installation or service, it is strongly recommended to purchase two SGW cable extensions.
